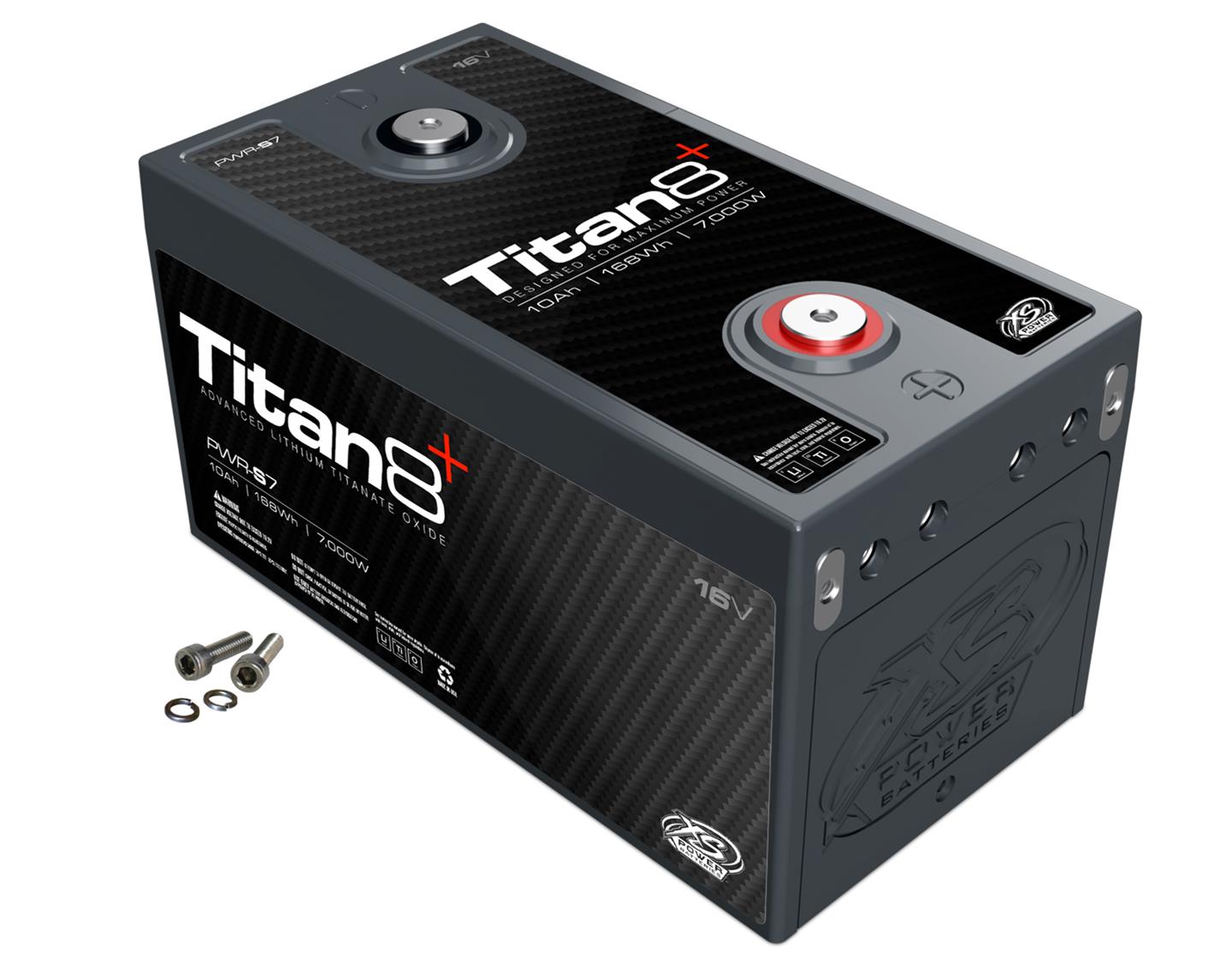

XS Power Titan8 Lithium Batteries PWR-S7

XS Power Titan8 Lithium Batteries

XS Power Titan8 lithium batteries are designed for peak power. This Lithium Titanate Oxide (LTO) Series uses a very high-power lithium cell that is designed for very high-burst output (up to 100 times its capacity) as well as very high-charge current (30 to 60 times its capacity). This translates to a single 10Ah module that can support burst current up to 1,000 amps and can accept 300 amps of continuous charge current. The built in 2/0 bussing allows up to four positive and four negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 12 V, 24 V, 36 V, or any configuration imaginable.

Each module comes standard with a built-in balancing system and can be upgraded to include Bluetooth connectivity that allows remote cell monitoring, internal temperature sensing, battery health monitoring, and can be configured to send notifications to any tablet or smartphone when any user preset limit is met, including low voltage, over temperature, overcharge, etc.

XS Power Titan8 lithium batteries are also offered in BCI direct fit models that are fully insulated with temperature monitoring built in that are suitable for use in the factory under hood position.
