Brand:
Manufacturer's Part Number:
Part Type:
Product Line:
MGR Products Part Number:
Battery Usage:
Starting
BCI Group Number:
34
Volts:
16 V
Battery Terminals:
Top
Car and Truck Battery Type:
Lithium
Cranking Amps (32 degrees F):
500 amps
Battery Amp Hour Capacity:
20.0
Length (in.):
10.240 in.
Width (in.):
6.890 in.
Height (in.):
7.160 in.
Weight:
12.000 lbs.
Remanufactured:
No
Quantity:
Sold individually.

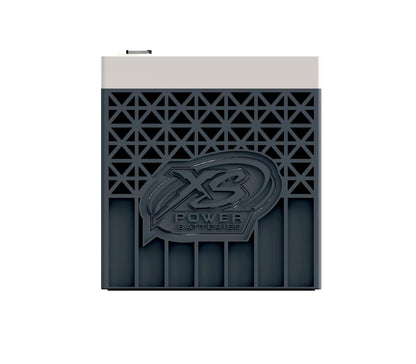

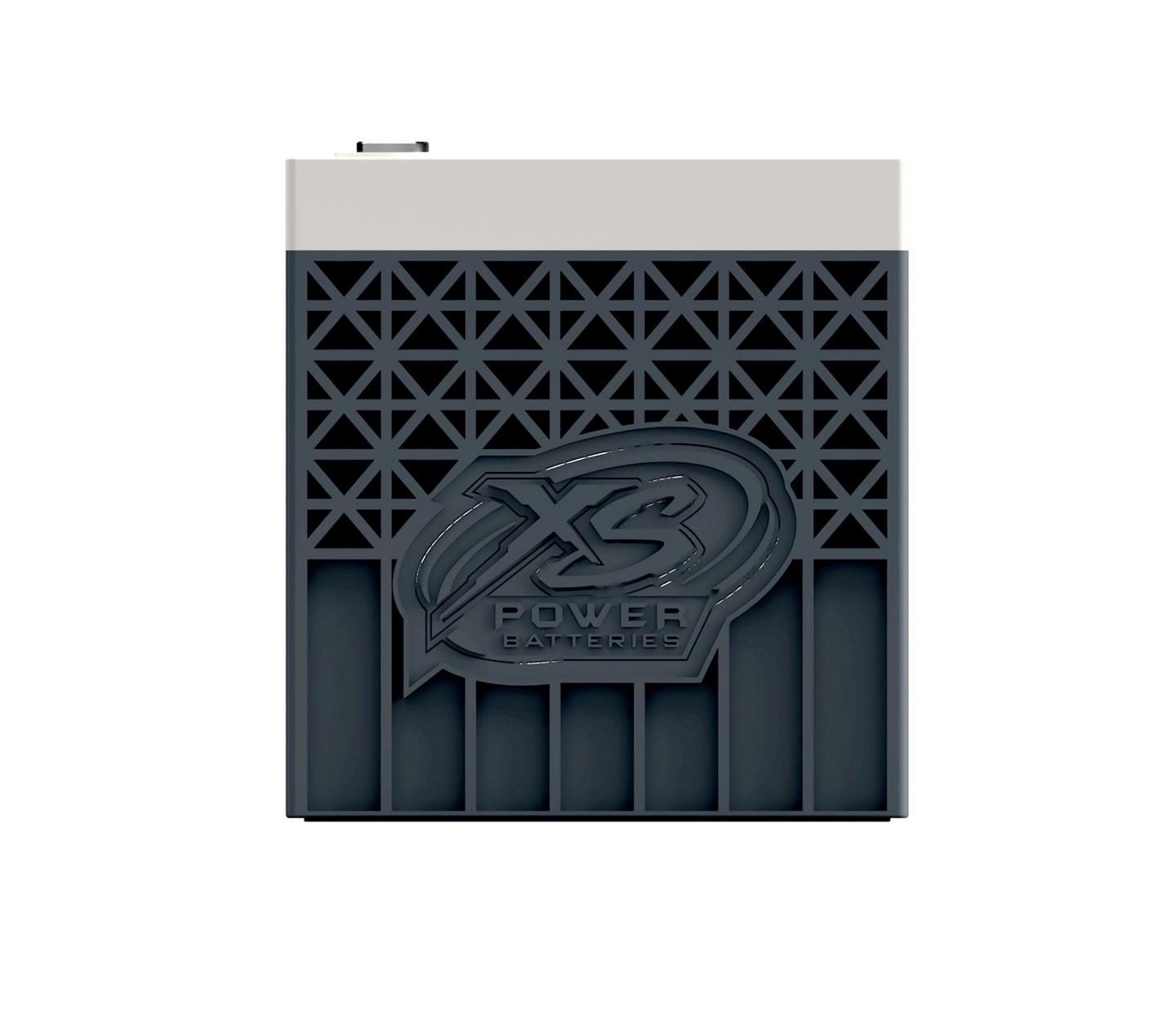

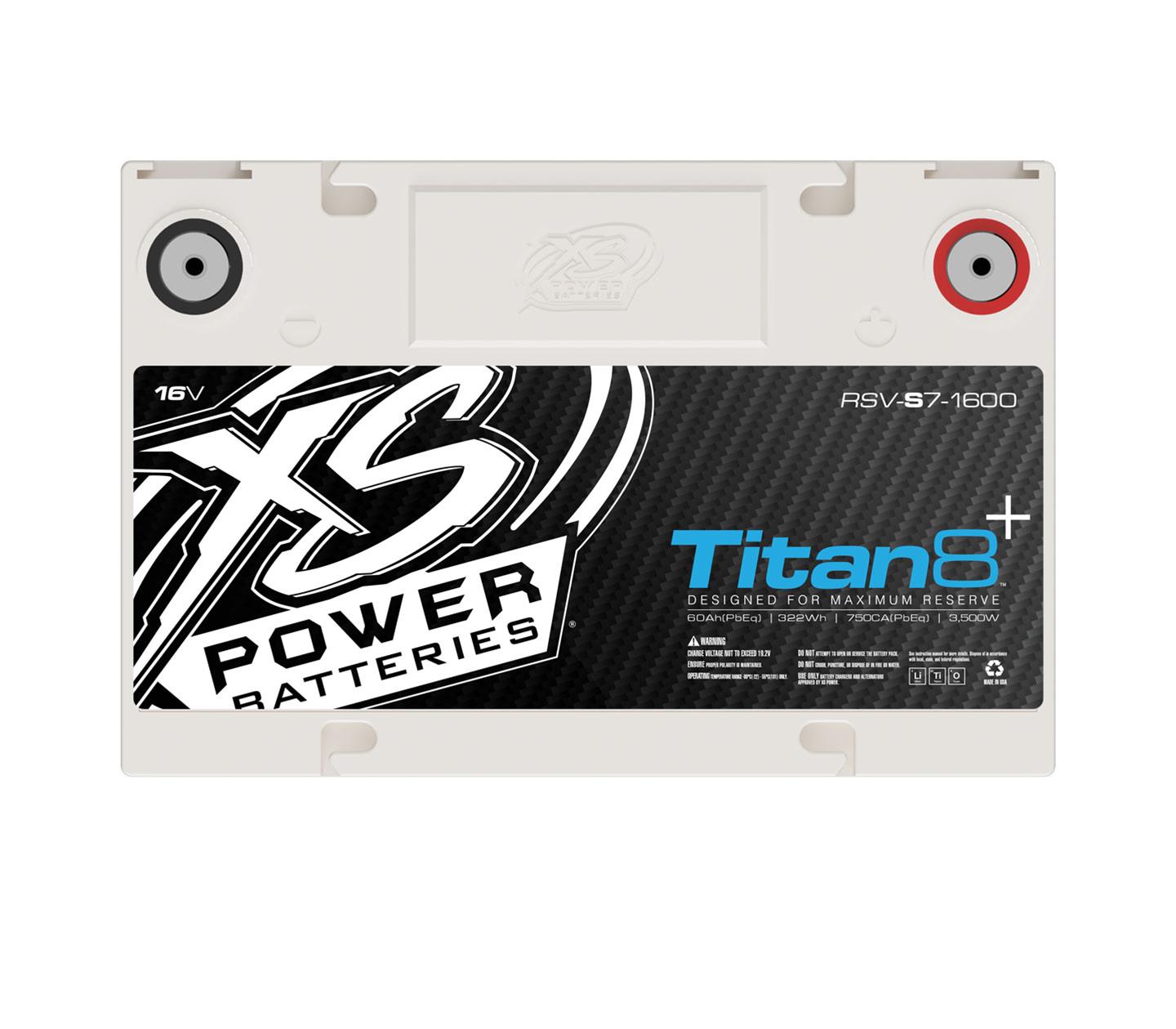

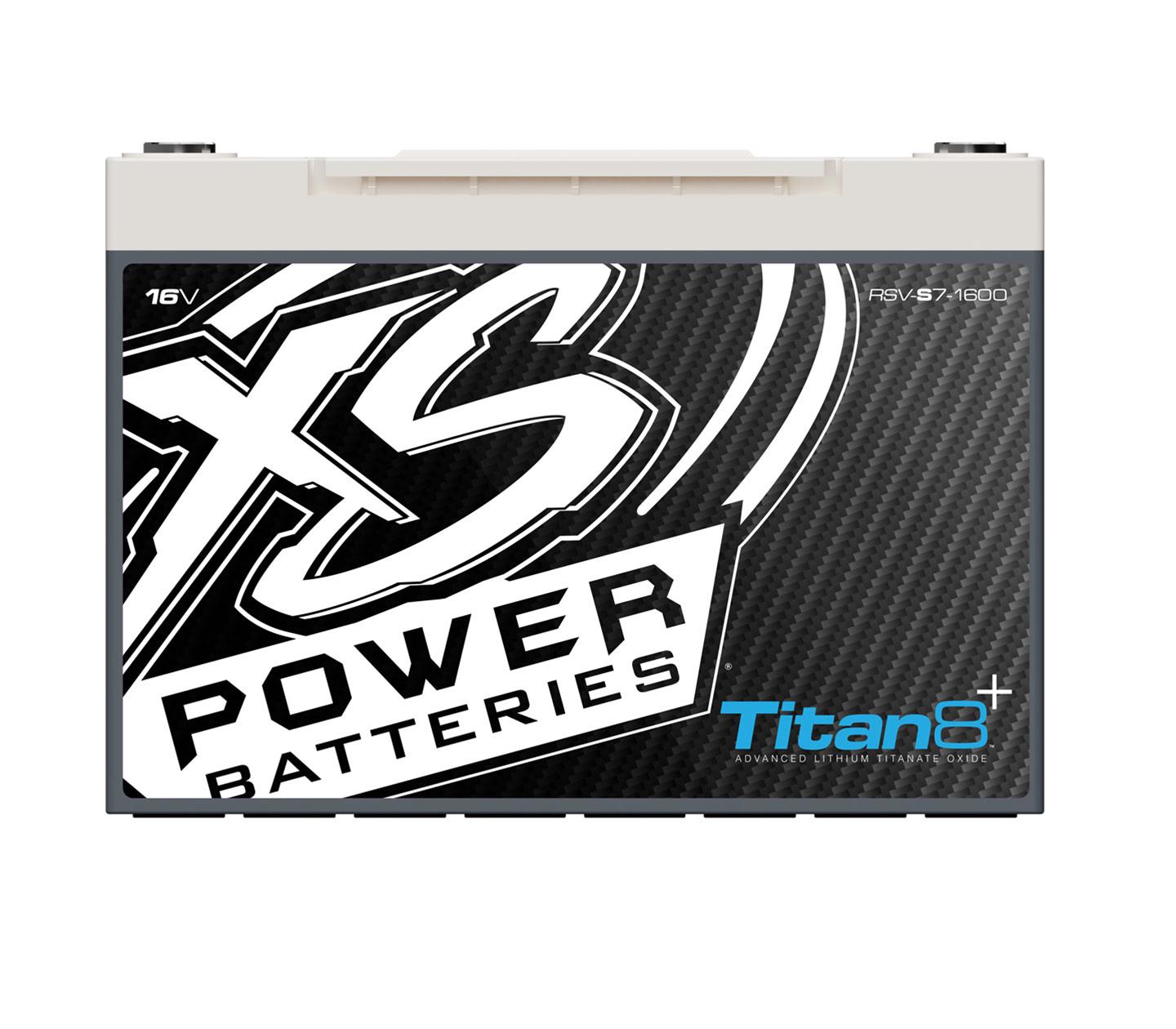

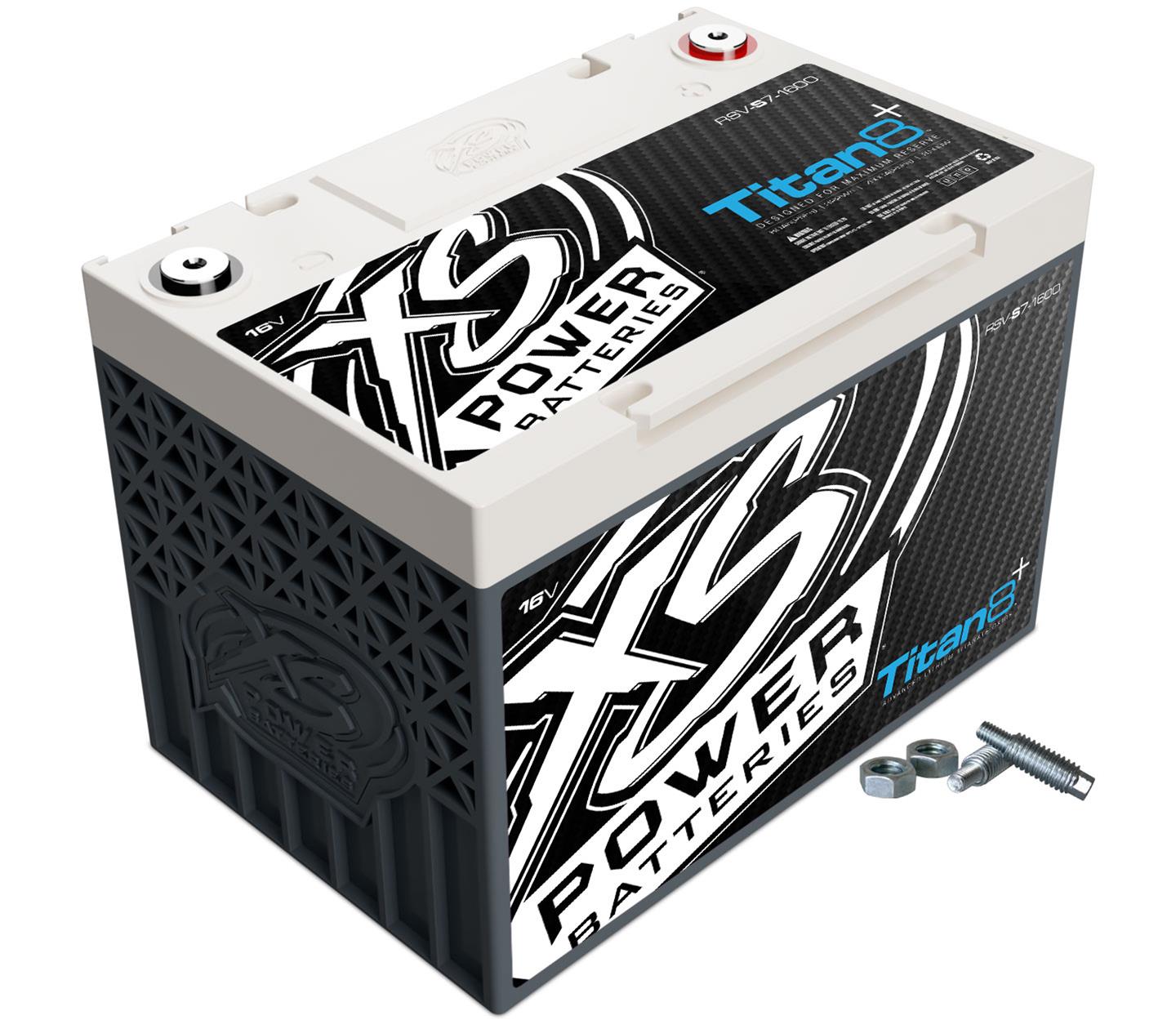

XS Power RSV Titan8 Lithium Batteries
XS Power RSV Titan8 lithium batteries are designed to maximize capacity and deep cycling abilities. Part of XS Power's Lithium Titanate Oxide (LTO) Series, they have double the amount of storage energy but only half of the instant discharge energy, giving them double the capacity rating, but half of the wattage rating. The built-in 2/0 bussing allows up to four positive and four negative hidden direct connections to each module without the need for any external exposed bussing, while still leaving two easily accessible top terminals and four series or parallel expansion terminals to easily build a bank of nearly any configuration from 12 V, 24 V, 36 V, or any configuration imaginable. XS Power RSV Titan8 BCI direct-fit models are also available.
