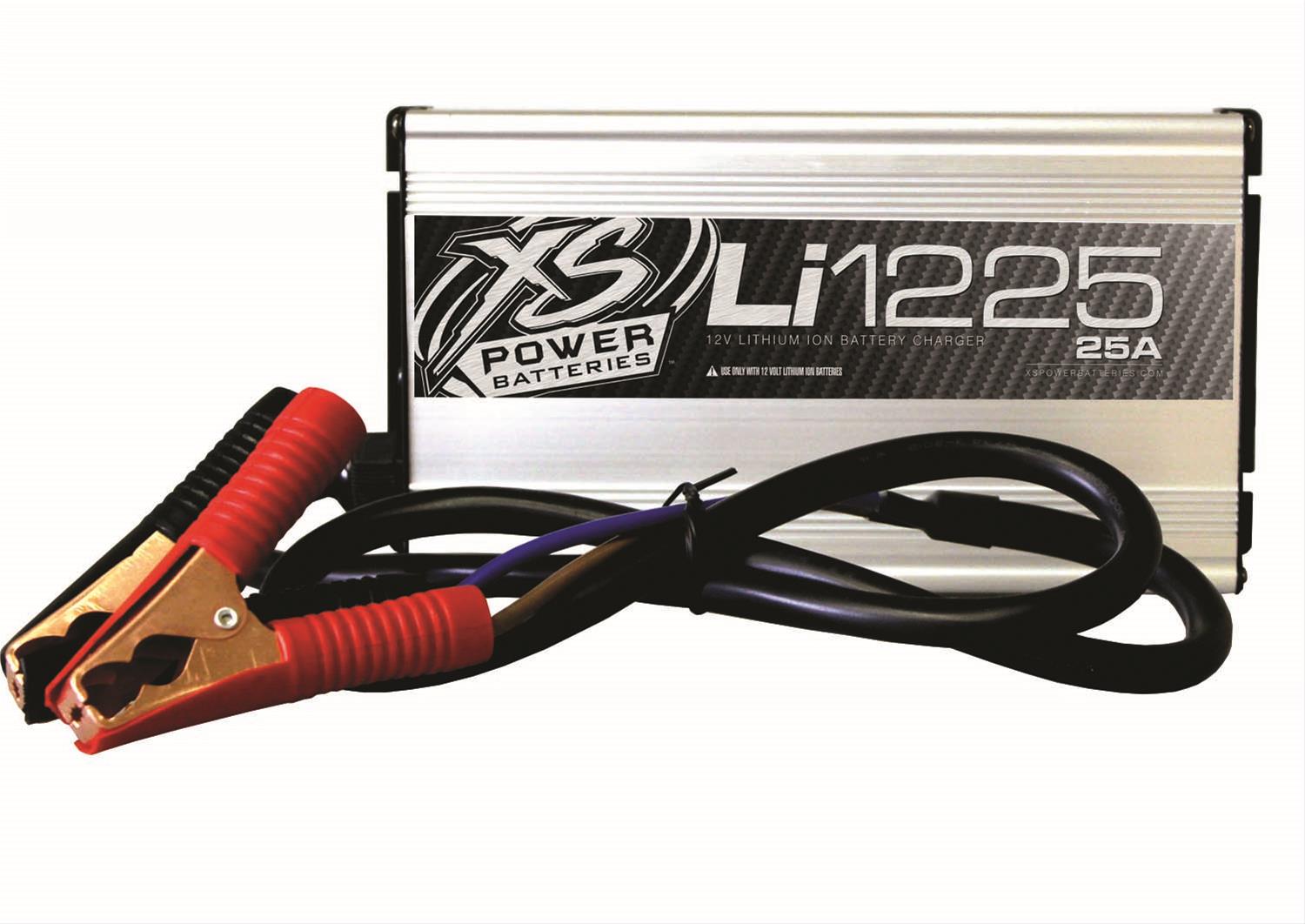

XS Power High-Frequency Lithium-Ion IntelliChargers LI1225

12V High Frequency Lithium IntelliCharger, 25A

XS Power High-Frequency Lithium-Ion IntelliChargers

XS Power high-frequency lithium-ion IntelliChargers are part of XS Power Li Charger Series. These chargers combine the reliability of a high-frequency MOSFET rectified assembly with an advanced microprocessor control board to create a battery charger that can rapidly and safely recharge 12 V and 16 V lithium ion batteries in several sizes. Order the XS Power high-frequency lithium-ion IntelliCharger suited to your needs.

Product Overview:

* Designed specifically for high performance 12 V or 16 V lithium ion batteries—rapidly and safely recharges 12 V and 16V lithium ion batteries in several sizes
* Features AC input and DC output connections
* Voltage monitoring—the battery's terminal voltage is measured every five minutes by the on-board microprocessors and this information is analyzed in addition to the elapsed time to dynamically control the battery charger for optimum charging performance
* Automatic Computer Analysis/Auto Shutdown—the microprocessors will analyze the battery when connected, if the battery's voltage is below 4 volts, the charger may not recognize the battery is connected and will not begin charging (likewise, if the battery will not come up to the correct voltage in a ten-hour period the microprocessor control board will automatically shut the charger off)
* UL approved battery cables are provided that are resistant to cuts and abrasion
* The copper plated battery clamps are compact, and custom designed for easy connections
* All clamp connections are soldered for maximum current flow
* Internal cooling fan automatically operates during charging to keep the circuit and other internal components at a constant safe temperature
