Compare to Power Team OTC Enerpac Simplex BVA on par with top quality at affordable price
Not a Chinese throwaway!
Shaft is chrome plated to resist corrosion.
Bronze wear bearing to protect inner barrel wall.

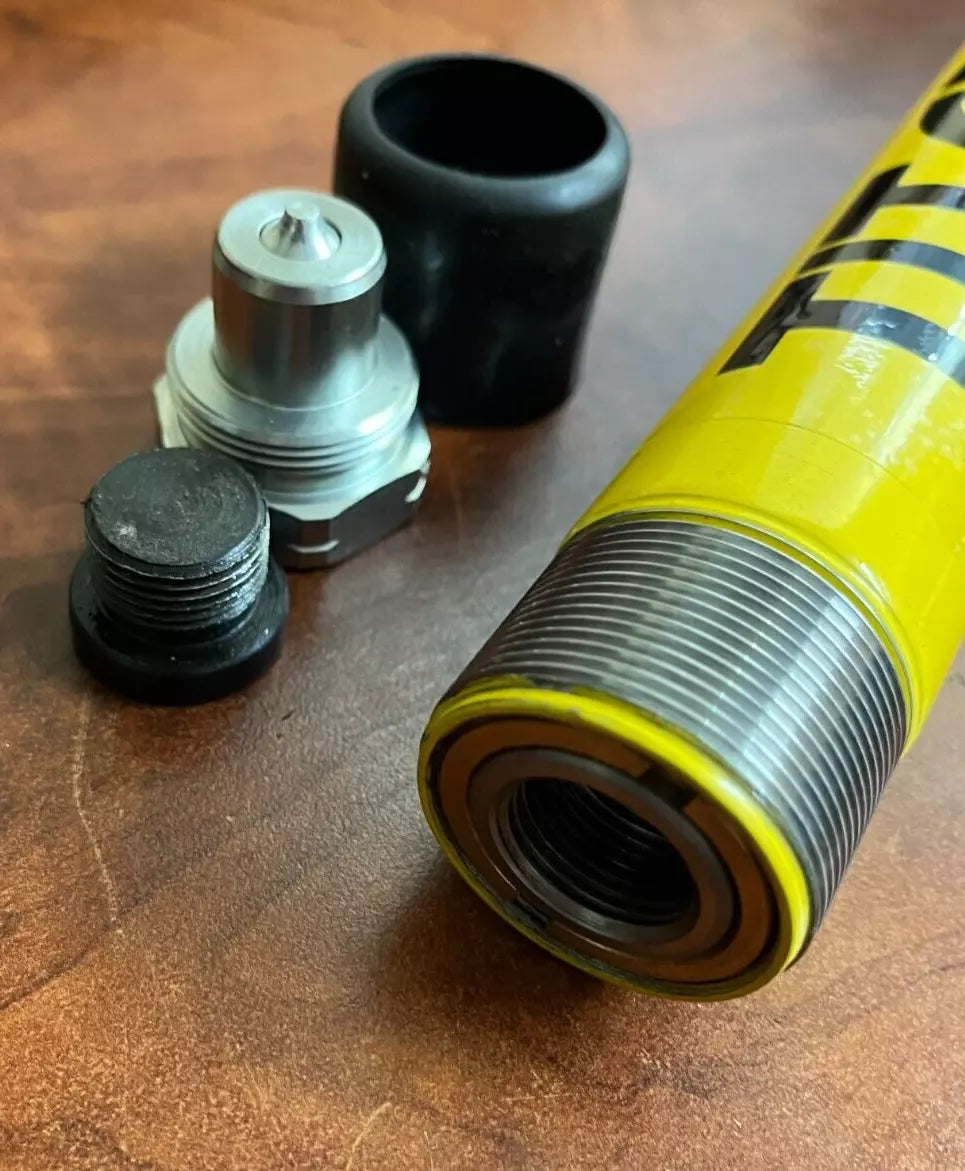

Collar threads for adaptability.
Suitable for Lifting, Pressing, Clamping and Bending.
Has female threads on bottom for adaptability.
Collar threads have rubber protector.
Comes with full quick coupler both male and female.
Internal return spring, single acting.
Tested at factory in a press to max pressure for leaks, full quality control prior to selling.
- RUGGED; HIGH QUALITY CYLINDER USED FOR LIFTING AND PRESSING
- Aluminum bronze bearing reduces wear caused by off-center loads.
- Maximum sized springs speed piston return and increase spring life.
- Solid steel cylinder body for durability.
- Chrome plated piston rod resists wear and corrosion.
- Wide range of accessories available to thread onto piston rod; collar; or onto cylinder base.
- A 3/8 NPTF COMPLETE COUPLER is INLUDED.

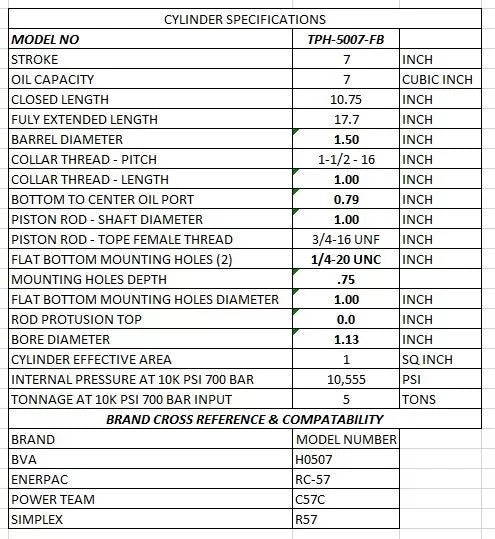

- Cylinder Capacity (Tons): 5
- Stroke (in.): 7 1/4
- Oil Cap. (cu. In.): 7.2
- Bore Diameter (in.): 1 1/8
- Cylinder Effective Area (sq. in): 0.994
- Internal Pressure at Cap. (psi): 10061
- Tons at 10;000 psi (psi): 4.97
- Weight (lbs.): 5
- Retracted Height (in.): 10 3/4
- Extended Height (in.): 18
- Outside Diameter (in.): 1 1/2
- Collar Thread (in.): 1 1/2-16
- Piston Collar Thread Length (in.): 1 1/8
- Base to Port (in.): 3/4
- Piston Rod Diameter (in.): 1
- Piston Internal Thread and Depth (in.): 3/4-16 x 5/8
- Rod Protrusion (in.): 1/4
RETURNS WILL ONLY BE ACCEPTED FOR MANUFACTURER DEFECTS ONLY
